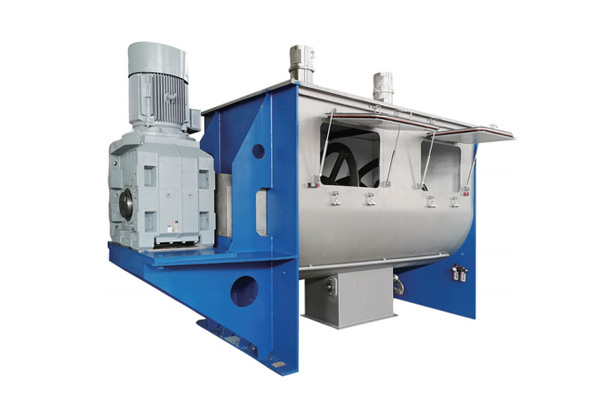

Ribbon mixer
INTRODUCE
The screw belt mixer is suitable for stirring and mixing particles or materials containing particles, with a wide range of applications. It can mix powders and liquids, especially for mixing materials with different densities, showing its advantages. Spiral belt mixer is widely used in industries such as lithium battery materials, plastic pellets, food, pharmaceuticals, etc.
189-3996-8601
Online consultationCHARACTERISTIC
- The U-shaped long cylinder structure ensures low resistance movement of the mixed material inside the cylinder;

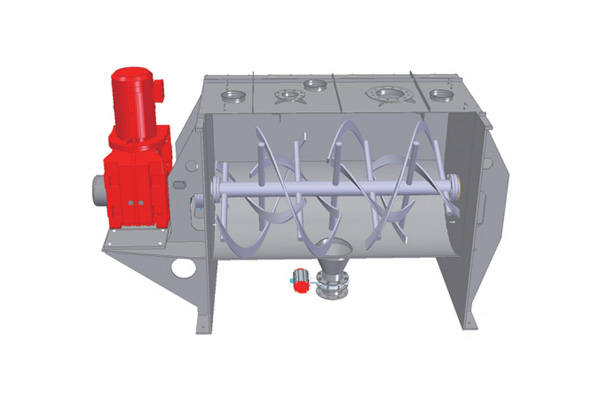

- The design of double-layer spiral shaped blades accelerates the mixing speed and improves the mixing uniformity;
- There is a discharge port located in the center of the bottom of the cylinder to ensure that there are no blind spots for material discharge inside the cylinder;
- The mixing process is mild and has low fragmentation, making it a new type of mixing equipment with high efficiency, high uniformity, and low fragmentation.
Product parameters
| Cylinder volume（L） | Equipment specifications（MM） | Equipment weight（KG） | load factor | Working voltage V） |
| 5000 | 3890*1500*2436 | 4450 | 0.4~0.6 | AC380 |
| Mixing shaft speed（rpm） | Mixing motor power（KW） | Working pressure of discharge cylinder（MPa） | Working pressure of shaft seal（MPa） | |
| 29 | 45 | 0.6 | ＜0.1 | |
| Non standard customization is possible | ||||
