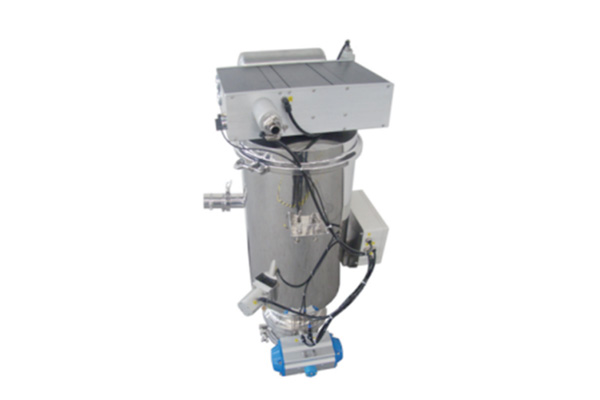

Pure pneumatic conveyor
INTRODUCE

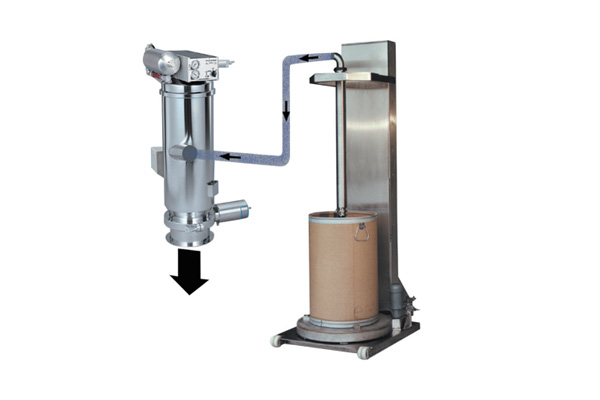

A pure pneumatic conveyor is a dust-free closed pipeline conveying equipment that uses the Venturi principle to generate negative pressure suction to transport particles and powdery materials. It utilizes the pressure difference between vacuum and the environment to create gas flow inside the pipeline, driving the movement of powdery materials and completing the transportation of materials.
189-3996-8601
Online consultationCHARACTERISTIC
- Eliminate dust pollution to the environment, minimize environmental and personnel contact with materials as much as possible, and effectively improve the cleanliness of products;
- Using pipeline transportation, it occupies a small space and can complete material transportation in a narrow space, making the working environment beautiful and elegant;
- Equipment installation is not limited by distance or environment, and is the preferred method for the vast majority of material transportation;
- The equipment is controlled by a pure pneumatic system and can be used in working environments with explosion-proof requirements.
Product parameters
| Model | PPC180 | PPC250 | PPC320 | PPC430 | PPC560 |
| Conveying capacity（L/H） | 50~200 | 200~500 | 500~1000 | 1000~2000 | 2000~3000 |
| Hopper capacity （L） | 6 | 12 | 24 | 50 | 100 |
| Working pressure（MPa） | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Compressed air consumption（NL/min） | 500 | 900 | 1800 | 2700 | 3600 |
| Equipment body height（MM） | 780 | 960 | 1270 | 1470 | 1660 |
