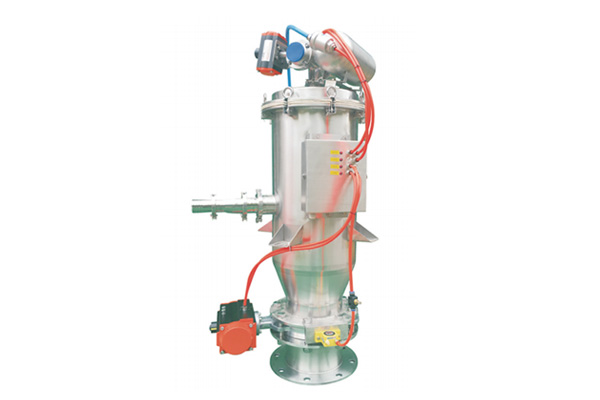

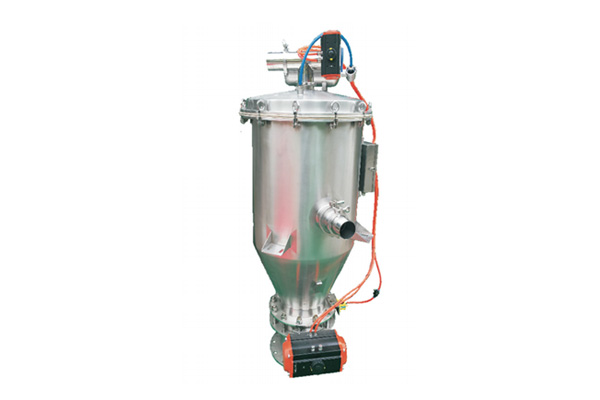

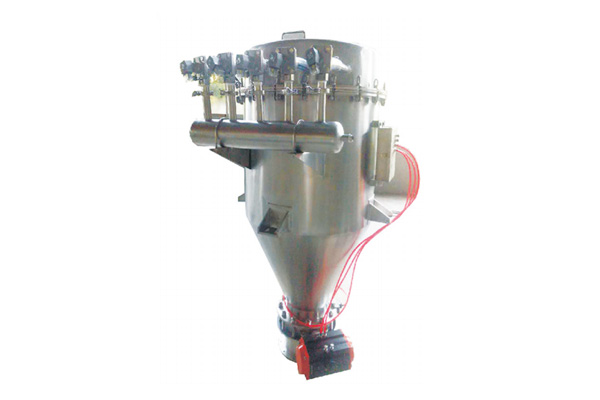

Vacuum conveyor
INTRODUCE
A vacuum conveyor is a dust-free enclosed pipeline conveying equipment that uses negative pressure suction to transport particles and powdery materials. It utilizes the pressure difference between vacuum and the environment to create gas flow inside the pipeline, driving the movement of powdery materials and completing the transportation of materials.
189-3996-8601
Online consultationCHARACTERISTIC
- Eliminate dust pollution to the environment, minimize environmental and personnel contact with materials as much as possible, and effectively improve the cleanliness of products;
- Using pipeline transportation, it occupies a small space and can complete material transportation in a narrow space, making the working environment beautiful and elegant;
- Equipment installation is not limited by distance or environment, and is the preferred method for the vast majority of material transportation;
- Automated process human-machine interface operation reduces the professional skill requirements for operators.
Product parameters
| Model | DPC320 | DPC430 | DPC560 | DPC800 | DPC1000 |
| Power（KW） | 4 | 5.5 | 7.5 | 11 | 15 |
| Size（MM） | Φ320*1270 | Φ430*1470 | Φ560*1660 | Φ800*1920 | Φ1000*2580 |
| Working pressure（MPa） | -0.04 | -0.04 | -0.04 | -0.04 | -0.04 |
| Compressed air（NL/min） | 50~100 | 50~100 | 50~100 | 50~100 | 50~100 |
| Filtration（um） | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Filter area（㎡） | 1.5 | 2.5 | 4.0 | 9.0 | 12 |
| Conveying capacity（M³/H） | 0.3~0.8 | 1.5~2 | 3~4 | 5~6 | 6~8 |
| Hopper capacity （L） | 24 | 60 | 115 | 170 | 375 |
| Equipment weight（KG） | 72 | 110 | 150 | 230 | 290 |
